GM-83 — Geologic Map of the Cedar Hill 7.5-Minute Quadrangle, San Juan County, New Mexico; and Southern Ute Reservation and La Plata County, Colorado

By: Hobbs, Kevin M.; Gillam, Mary L., 2026, scale 1:24,000

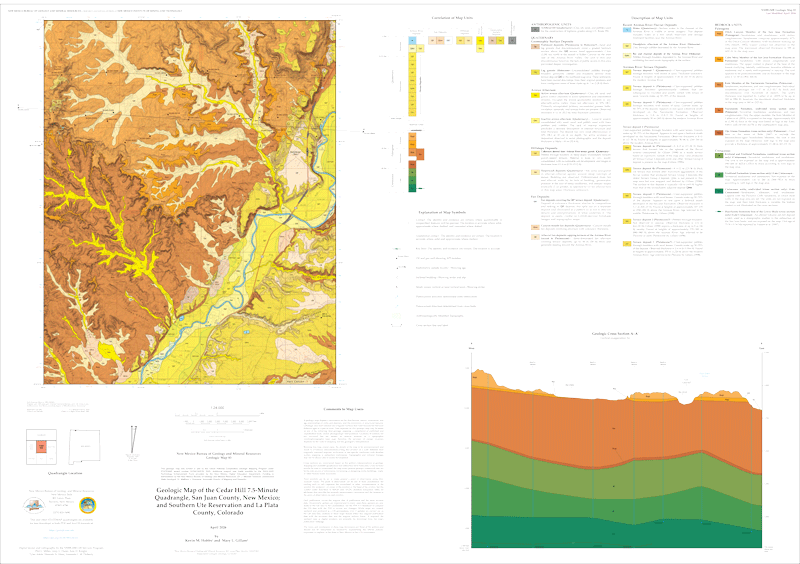

Geologic map of the Cedar Hill 7.5-minute Quadrangle, San Juan County, New Mexico

The Cedar Hill 7.5-minute Quadrangle is located along the Animas River, approximately 13 km north-northeast of Aztec, in northeast San Juan County, New Mexico. Building on earlier 1:50,000-scale surficial mapping (Gillam, 1998), this map focuses on accurately mapping surface deposits on hillslopes and valley floors, identifying low-angle folds and small faults, and refining member-level designations of the Paleogene rock units in the area.

The quadrangle sits near the synclinal axis of the central San Juan Basin — a broken-foreland structural basin formed during the Laramide Orogeny (Kelley, 1951; Craigg, 2001) — resulting in gently dipping bedrock throughout most of the map area. Bedrock consists entirely of Paleogene siliciclastic sedimentary rocks, with no known igneous or metamorphic outcrops. Quaternary surface deposits including sand sheets, terrace alluvium, and valley-floor alluvium overlie the bedrock throughout the quadrangle.

The area’s geologic history unfolded in three episodes: river deposits during the Laramide Orogeny formed the Nacimiento and San Jose Formations; the Animas River later cycled through deposition and incision, leaving coarse terrace deposits; and wind-blown sand sheets were deposited later in the Quaternary. Arroyo incision and wind deposition dominate the landscape today.

Dozens of arroyos drain into the Animas River. Landforms include arroyos, canyons, mesas, low-relief plains, eolian dunes, and the active floodplain of the Animas River. Vegetation is typical of U.S. EPA Level III ecoregions 22i (San Juan/Chaco Tablelands) and 20c (Colorado Plateau Semiarid Benchlands) (USEPA, 2013).

$10.00 Buy Now

Also available as a free download.

Download

The map and accompanying booklet may be downloaded free of charge.

File Name Size Last Modified
GM-83_CedarHill.pdf 13.92 MB 05/01/2026 03:55:20 PM
GM-83_CedarHill.ppkx 122.54 MB 04/28/2026 04:41:34 PM
GM-83_CedarHill_Report.pdf 669 KB 05/01/2026 03:55:25 PM
